180ELB-449F-2-40 – Elbows – 180º – Hose to Hose with Split Clamp (MIL-DTL-24787/6, Type U, Group IV)
180ELB-449F-2-40 – Elbows – 180º – Hose to Hose with Split Clamp (MIL-DTL-24787/6, Type U, Group IV)images1-2images2
180ELB-449F-2-40

180ELB-449F-2-40 – Elbows – 180º – Hose to Hose with Split Clamp (MIL-DTL-24787/6, Type U, Group IV)

Print Icon Print Download Icon Download PDF
( MIL-DTL-24787/6, Type U, Group IV )

Description:

Equal to Aeroquip P/N 375-190786,
Use with the following hose: HS4265, HS4224 2652, 150901

Specification

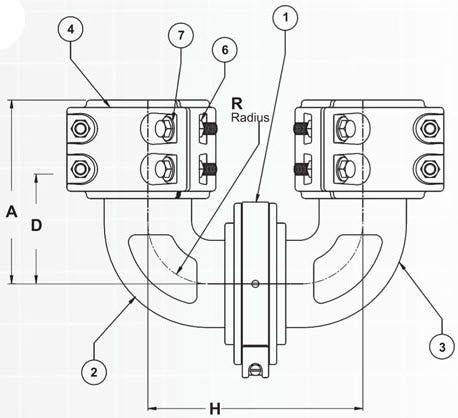

  • Applicable Hoses: HS4265 HS4224 2652 150901
  • Component 1: Required per Assembly – 1 Description – Clamp Assembly C18078 Material – Aluminum Bronze in accordance with ASTM B505 C95400 – See item B-CLMP-2S
  • Component 1A: Required per Assembly – 1R-RNG/O-230Description – "O"-RingMaterial – Buna-N
  • Component 1B: Required per Assembly – 1 Material – Buna-N R-RNG/BU-8 Description – Back-Up Ring
  • Component 2: Required per Assembly – 1 Material – Aluminum Bronze D18129 Description – Female Elbow
  • Component 3: Required per Assembly – 1 D18124 Description – Male Elbow Material – Aluminum Bronze in accordance with MIL-B-24480 C95800
  • Component 4: D17299-1 Description – Segment Required per Assembly – 3 Material – Aluminum Bronze in accordance with MIL-B-24480 C95800
  • Component 5: Required per Assembly – 6 B17673-2 Description – Bolt Material – Monel in accordance with QQ-N-286
  • Component 6: Required per Assembly – 6 B18176 Description – Lock Nut Material – Monel in accordance with QQ-N-281
  • Component 7: B18175 Description – Washer Required per Assembly – 6 Material – Monel in accordance with QQ-N-281
  • H: '5.40
  • R: '1.88
  • T: '5.35
  • A: '5.70
  • D: '2.83
  • Equal To Aeroquip No : '265-190786-2-40 375-190786-2-40
  • Est. Wt. (lbs.): 15
  • Hydrasearch Drawing Number: D18073
  • IPS Size: '2
  • Mil Spec: Mil-Dtl-24787/6
  • NSN No.: 4730-00-963-5856

Specification Table

Applicable HosesHS4265 HS4224 2652 150901
Component 1Required per Assembly – 1 Description – Clamp Assembly C18078 Material – Aluminum Bronze in accordance with ASTM B505 C95400 – See item B-CLMP-2S
Component 1ARequired per Assembly – 1R-RNG/O-230Description – "O"-RingMaterial – Buna-N
Component 1BRequired per Assembly – 1 Material – Buna-N R-RNG/BU-8 Description – Back-Up Ring
Component 2 Required per Assembly – 1 Material – Aluminum Bronze D18129 Description – Female Elbow
Component 3Required per Assembly – 1 D18124 Description – Male Elbow Material – Aluminum Bronze in accordance with MIL-B-24480 C95800
Component 4D17299-1 Description – Segment Required per Assembly – 3 Material – Aluminum Bronze in accordance with MIL-B-24480 C95800
Component 5Required per Assembly – 6 B17673-2 Description – Bolt Material – Monel in accordance with QQ-N-286
Component 6Required per Assembly – 6 B18176 Description – Lock Nut Material – Monel in accordance with QQ-N-281
Component 7 B18175 Description – Washer Required per Assembly – 6 Material – Monel in accordance with QQ-N-281
H '5.40
R '1.88
T '5.35
A '5.70
D '2.83
Equal To Aeroquip No '265-190786-2-40 375-190786-2-40
Est. Wt. (lbs.)15
Hydrasearch Drawing NumberD18073
IPS Size'2
Mil Spec Mil-Dtl-24787/6
NSN No. 4730-00-963-5856
