149-39270-08 – High Pressure Rubber Flared Hose Fittings – Straight, Flared
149-39270-08 – High Pressure Rubber Flared Hose Fittings – Straight, Flaredhighpressurehosefitting-straightflared149-39270-16-cut-side
149-39270-08

149-39270-08 – High Pressure Rubber Flared Hose Fittings – Straight, Flared

Print Icon Print Download Icon Download PDF

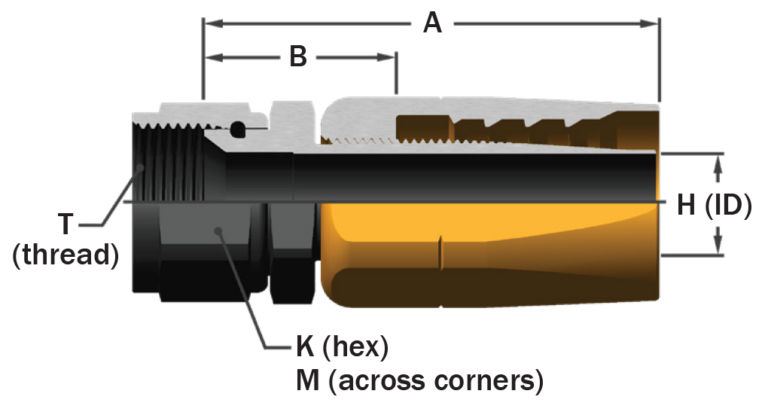

Specification

  • Weight: 0.231 lbs
  • H: '0.375
  • K: '0.875
  • M: '1.010
  • Hose Size: '1/2
  • Insert Assembly: 149-39128
  • Mil Spec: MS28760
  • NSN No.: '4730-00-541-4253
  • Thread Size - T: 3/4"-16
  • Type 1: Complete Fitting

Specification Table

Weight0.231 lbs
H'0.375
K'0.875
M'1.010
Hose Size'1/2
Insert Assembly149-39128
Mil SpecMS28760
NSN No.'4730-00-541-4253
Thread Size - T3/4"-16
Type 1Complete Fitting
