149-1090-10

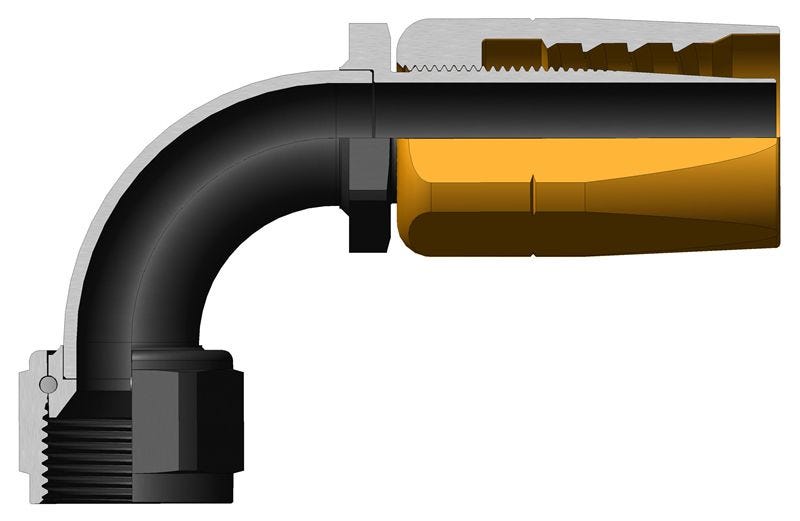

149-1090-10 – High Pressure Rubber Flared Hose Fittings – 90º Elbow, Flared

Print Icon Print Download Icon Download PDF

Specification

  • Weight: 0.375 lbs
  • G: 1.125''
  • H: 0.468''
  • K: 1.000''
  • M: 1.16''
  • R: 0.62''
  • Hose Size: 5/8''
  • Insert Assembly: 149-1190-10
  • Mil Spec: MS28781
  • NSN No.: 4730-00-064-2657''
  • Thread Size - T: 7/8"-14
  • Type 1: Complete Fitting

Specification Table

Weight0.375 lbs
G1.125''
H0.468''
K1.000''
M1.16''
R0.62''
Hose Size5/8''
Insert Assembly149-1190-10
Mil SpecMS28781
NSN No.4730-00-064-2657''
Thread Size - T7/8"-14
Type 1Complete Fitting
