149-1045-06

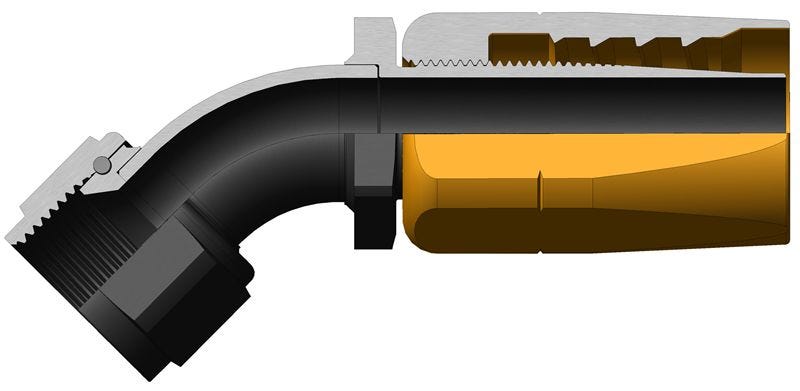

149-1045-06 – High Pressure Rubber Flared Hose Fittings – 45º Elbow, Flared

Print Icon Print Download Icon Download PDF

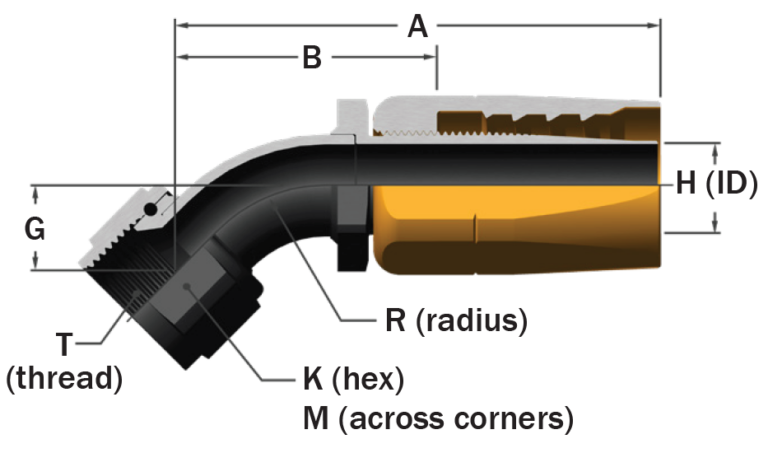

Specification

  • Weight: 0.16 lbs
  • G: 0.444''
  • H: 0.281''
  • K: 0.688''
  • M: 0.80''
  • R: 0.50''
  • Hose Size: 3/8''
  • Insert Assembly: 149-1145-06
  • Mil Spec: MS28780
  • NSN No.: 4730-00-064-2661''
  • Thread Size - T: 9/16"-18
  • Type 1: Complete Fitting

Specification Table

Weight0.16 lbs
G0.444''
H0.281''
K0.688''
M0.80''
R0.50''
Hose Size3/8''
Insert Assembly149-1145-06
Mil SpecMS28780
NSN No.4730-00-064-2661''
Thread Size - T9/16"-18
Type 1Complete Fitting
