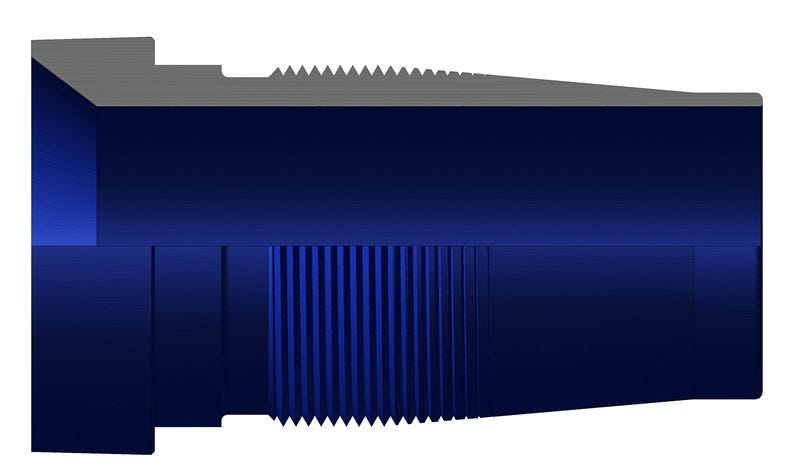

148-32210 – Medium Pressure Hose Fitting Inserts
148-32210 – Medium Pressure Hose Fitting Insertsmediumpressurehosefitting-insert148-32216-cut-side
148-32210

148-32210 – Medium Pressure Hose Fitting Inserts

Print Icon Print Download Icon Download PDF

Specification

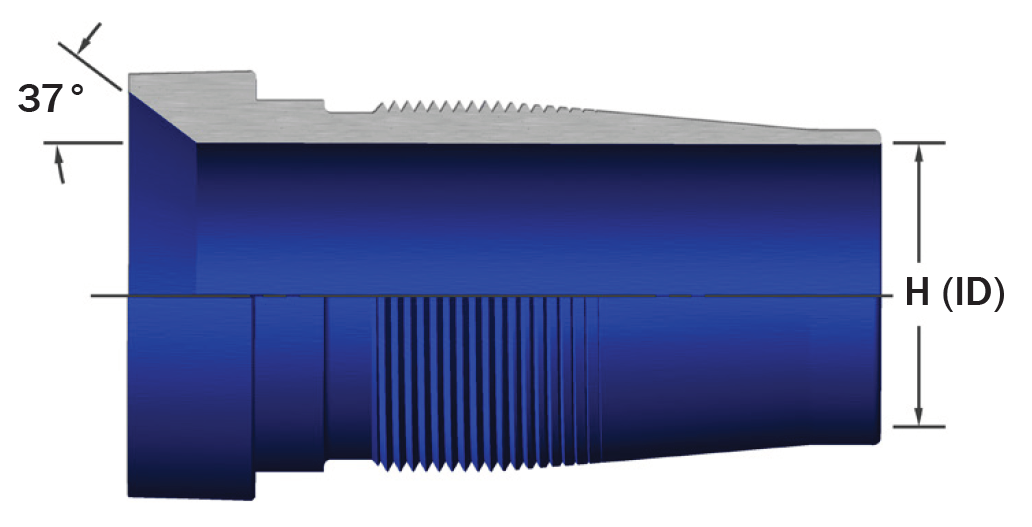

  • H: '0.486
  • Mil Spec: MS24588
  • Notes: Dimensional Information Is For Reference Only. Variations From These Dimensions On Actual Parts May Occur As The Result Of Engineering Revisions. Part Colors May Vary Due To Current Mil-S

Specification Table

H'0.486
Mil SpecMS24588
NotesDimensional Information Is For Reference Only. Variations From These Dimensions On Actual Parts May Occur As The Result Of Engineering Revisions. Part Colors May Vary Due To Current Mil-S
