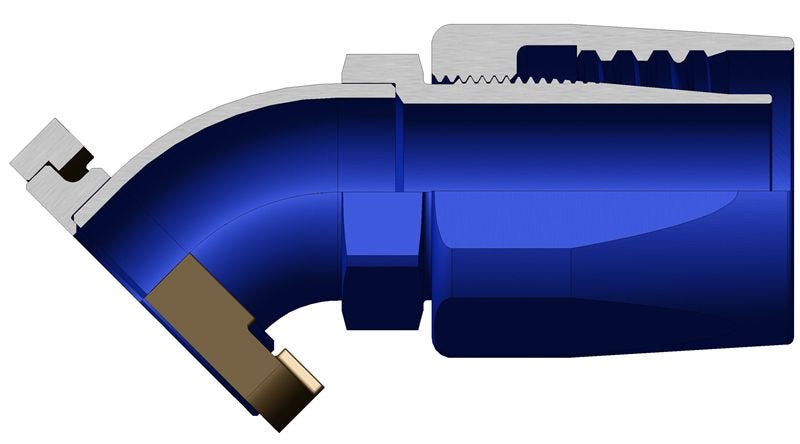

mediumpressurehosefitting 45degreeelbowflanged148 3045 16d cut side
mediumpressurehosefitting 45degreeelbowflanged148 3045 16d cut sidemediumpressurehosefitting-45degreeelbowflanged-dimensions-100x100
148-3045-16

148-3045-16 – Medium Pressure Rubber Flanged Hose Fittings – 45º Elbow, Flanged

Print Icon Print Download Icon Download PDF

Specification

  • Weight: 0.206 lbs
  • G: 0.505''
  • H: 0.815''
  • R: 0.97''
  • Hose Size: 1''
  • Insert Assembly: 148-3145-16
  • Mil Spec: MS27230
  • Type 1: Complete Assembly
  • Notes: Dimension B: Cutoff Factor Dimensional Information Is For Reference Only. Variations From These Dimensions On Actual Parts May Occur As The Result Of Engineering Revisions. P

Specification Table

Weight0.206 lbs
G0.505''
H0.815''
R0.97''
Hose Size1''
Insert Assembly148-3145-16
Mil SpecMS27230
Type 1Complete Assembly
NotesDimension B: Cutoff Factor Dimensional Information Is For Reference Only. Variations From These Dimensions On Actual Parts May Occur As The Result Of Engineering Revisions. P
