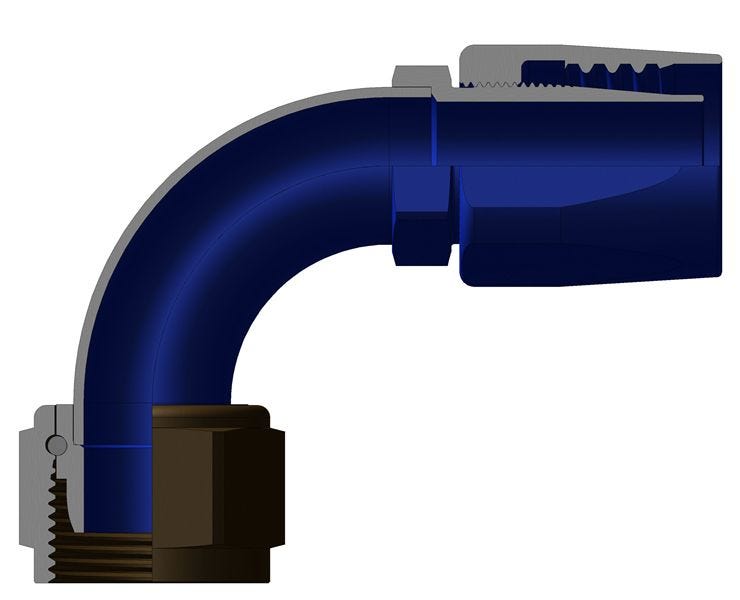

148-2090-16D – Medium Pressure Rubber Flareless Hose Fittings – 90º Elbow, Flareless

Print Icon Print Download Icon Download PDF

Specification

  • Weight: 0.292 lbs
  • G: 2.306''
  • H: 0.815''
  • K: 1.500''
  • M: 1.74''
  • R: 1.50''
  • Insert Assembly: 148-2190-16D
  • Thread Size - T: 1-5/16"-12
  • Type 1: Complete Assembly
  • Notes: Dimension B: Cutoff Factor Dimensional Information Is For Reference Only. Variations From These Dimensions On Actual Parts May Occur As The Result Of Engineering Revisions. Part Col

Specification Table

Weight0.292 lbs
G2.306''
H0.815''
K1.500''
M1.74''
R1.50''
Insert Assembly148-2190-16D
Thread Size - T1-5/16"-12
Type 1Complete Assembly
NotesDimension B: Cutoff Factor Dimensional Information Is For Reference Only. Variations From These Dimensions On Actual Parts May Occur As The Result Of Engineering Revisions. Part Col
