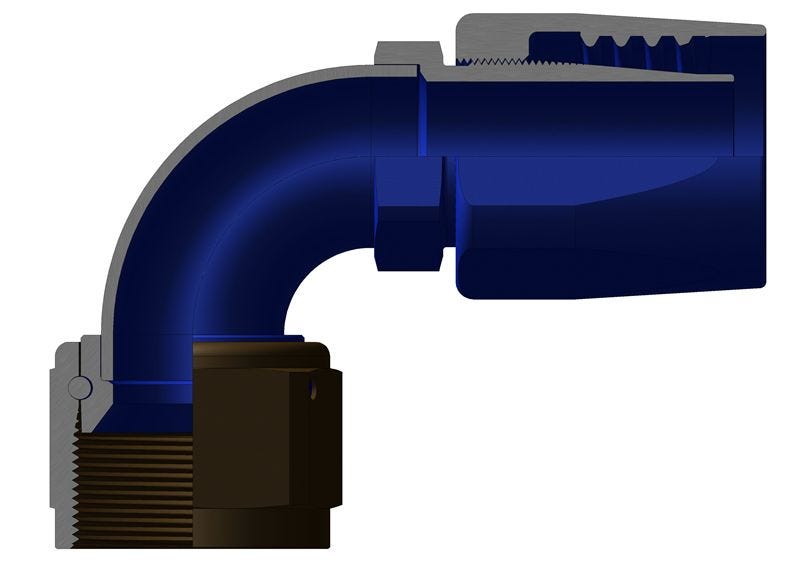

148-1090-24D – Medium Pressure Rubber Flared Hose Fittings – 90º Elbow, Flared

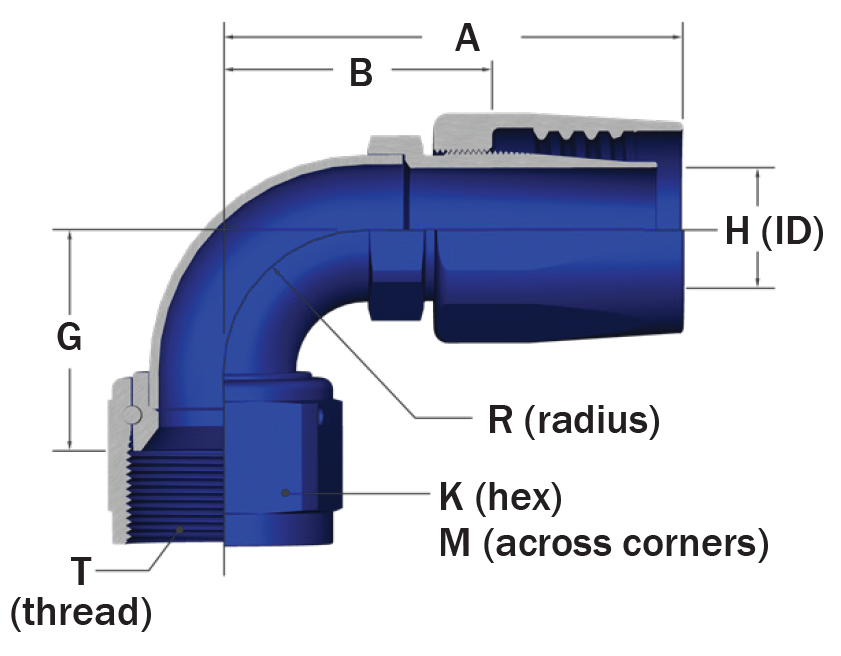

148-1090-24D – Medium Pressure Rubber Flared Hose Fittings – 90º Elbow, Flaredmediumpressurehosefitting-90degreeelbowflared-dimensions
148-1090-24D

148-1090-24D – Medium Pressure Rubber Flared Hose Fittings – 90º Elbow, Flared

Print Icon Print Download Icon Download PDF

Specification

  • Weight: 0.575 lbs
  • G: '2.032
  • H: '1.281
  • K: '2.125
  • M: '2.45
  • R: '1.38
  • Hose Size: '1-1/2
  • Insert Assembly: 148-1190-24D
  • Mil Spec: MS27224
  • NSN No.: '4730-00-203-0641
  • Thread Size - T: 1-7/8"-12
  • Type 1: Complete Assembly

Specification Table

Weight0.575 lbs
G'2.032
H'1.281
K'2.125
M'2.45
R'1.38
Hose Size'1-1/2
Insert Assembly148-1190-24D
Mil SpecMS27224
NSN No.'4730-00-203-0641
Thread Size - T1-7/8"-12
Type 1Complete Assembly
