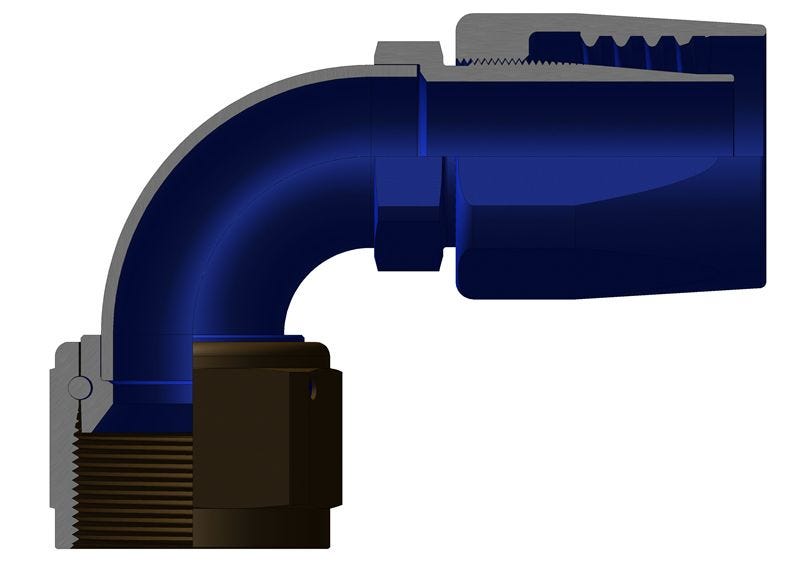

148-1090-20D – Medium Pressure Rubber Flared Hose Fittings – 90º Elbow, Flared
148-1090-20D – Medium Pressure Rubber Flared Hose Fittings – 90º Elbow, Flaredmediumpressurehosefitting-90degreeelbowflared-dimensions-100x100
148-1090-20D

148-1090-20D – Medium Pressure Rubber Flared Hose Fittings – 90º Elbow, Flared

Print Icon Print Download Icon Download PDF

Specification

  • Weight: 0.413 lbs
  • G: '1.782
  • H: '1.047
  • K: '1.812
  • M: '2.09
  • R: '1.19
  • Hose Size: '1-1/4
  • Insert Assembly: 148-1190-20D
  • Mil Spec: MS27224
  • NSN No.: '4730-00-778-3196
  • Thread Size - T: 1-5/8"-12
  • Type 1: Complete Assembly

Specification Table

Weight0.413 lbs
G'1.782
H'1.047
K'1.812
M'2.09
R'1.19
Hose Size'1-1/4
Insert Assembly148-1190-20D
Mil SpecMS27224
NSN No.'4730-00-778-3196
Thread Size - T1-5/8"-12
Type 1Complete Assembly
