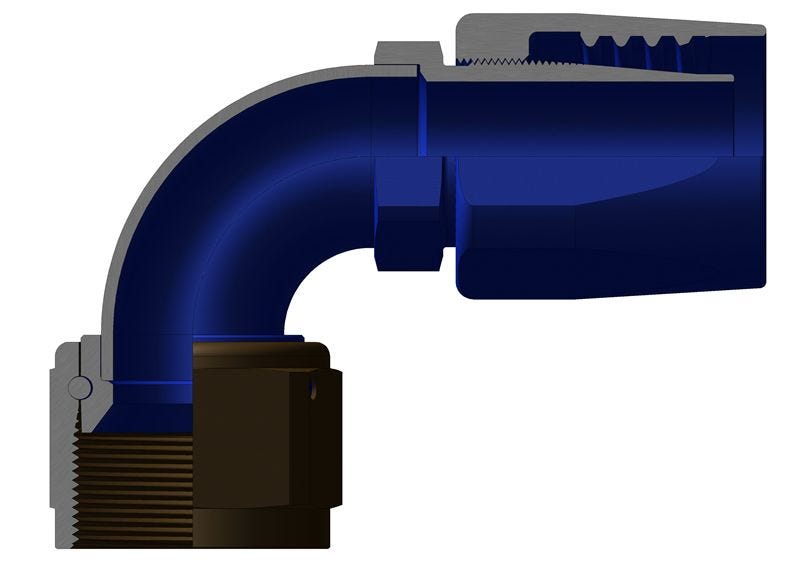

mediumpressurehosefitting 90degreeelbowflared148 1090 16d cut side 2
mediumpressurehosefitting 90degreeelbowflared148 1090 16d cut side 2mediumpressurehosefitting-90degreeelbowflared-dimensions-100x100-2
148-1090-04

148-1090-04 – Medium Pressure Rubber Flared Hose Fittings – 90º Elbow, Flared

Print Icon Print Download Icon Download PDF

Specification

  • Weight: 0.17 lbs
  • G: 0.718''
  • H: 0.126''
  • K: 0.562''
  • M: 0.650''
  • R: 0.38''
  • Hose Size: 1/4''
  • Insert Assembly: 148-1190-04
  • Mil Spec: MS27224
  • NSN No.: 4730-00-541-0486''
  • Thread Size - T: 7/16"-20
  • Type 1: Complete Assembly

Specification Table

Weight0.17 lbs
G0.718''
H0.126''
K0.562''
M0.650''
R0.38''
Hose Size1/4''
Insert Assembly148-1190-04
Mil SpecMS27224
NSN No.4730-00-541-0486''
Thread Size - T7/16"-20
Type 1Complete Assembly
