148-1045-06

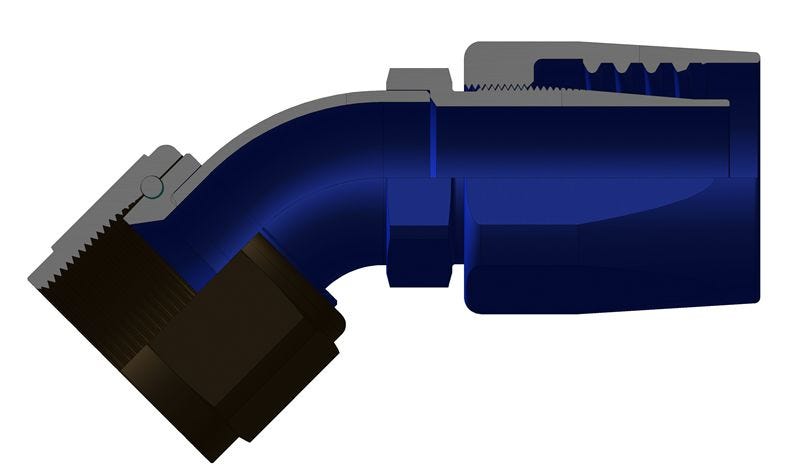

148-1045-06 – Medium Pressure Rubber Flared Hose Fittings – 45º Elbow, Flared

Print Icon Print Download Icon Download PDF

Specification

  • Weight: 0.212 lbs
  • G: 0.444''
  • H: 0.234''
  • K: 0.688''
  • M: 0.80''
  • R: 0.50''
  • Hose Size: 3/8''
  • Insert Assembly: 148-1145-06
  • Mil Spec: MS27226
  • NSN No.: 4730-00-830-6022''
  • Thread Size - T: 9/16"-18
  • Type 1: Complete Assembly

Specification Table

Weight0.212 lbs
G0.444''
H0.234''
K0.688''
M0.80''
R0.50''
Hose Size3/8''
Insert Assembly148-1145-06
Mil SpecMS27226
NSN No.4730-00-830-6022''
Thread Size - T9/16"-18
Type 1Complete Assembly
