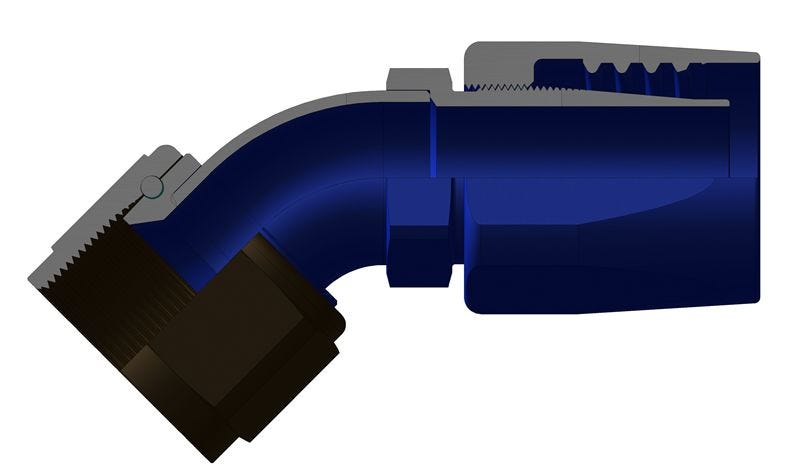

148-1045-03 – Medium Pressure Rubber Flared Hose Fittings – 45º Elbow, Flared

Print Icon Print Download Icon Download PDF

Specification

  • Weight: 0.163 lbs
  • A: 1.8
  • B: 1.14''
  • G: 0.376''
  • H: 0.126''
  • K: 0.500''
  • R: 0.38''
  • Hose Size: 3/16''
  • Insert Assembly: 148-1145-03
  • Mil Spec: MS27226
  • Thread Size - T: 3/8"-24
  • Type 1: Complete Assembly
  • Notes: Dimension B: Cutoff Factor Dimensional Information Is For Reference Only. Variations From These Dimensions On Actual Parts May Occur As The Result Of Engineering Revisions. Part Col

Specification Table

Weight0.163 lbs
A1.8
B1.14''
G0.376''
H0.126''
K0.500''
R0.38''
Hose Size3/16''
Insert Assembly148-1145-03
Mil SpecMS27226
Thread Size - T3/8"-24
Type 1Complete Assembly
NotesDimension B: Cutoff Factor Dimensional Information Is For Reference Only. Variations From These Dimensions On Actual Parts May Occur As The Result Of Engineering Revisions. Part Col
