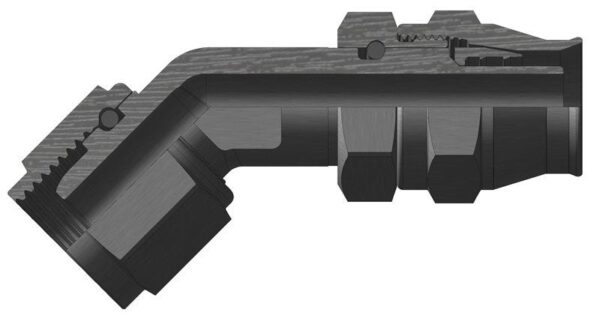

148-05217-3/-4 – Medium Pressure TFE Flareless Hose Fittings – 45º Elbow, Flareless, Forged
148-05217-3/-4 – Medium Pressure TFE Flareless Hose Fittings – 45º Elbow, Flareless, Forgedmedium_pressure_tfe_hose_fitting_-_45_degree_elbow_flareless_forged_1-100x100
148-05217-3/-4

148-05217-3/-4 – Medium Pressure TFE Flareless Hose Fittings – 45º Elbow, Flareless, Forged

Print Icon Print Download Icon Download PDF

Specification

  • Weight: 0.09 lbs
  • G: '0.432
  • H: '0.163
  • K: '0.500
  • L: '0.562
  • Hose Size: '3/16
  • Insert Assembly: 148-33174
  • Mil Spec: MS27384
  • NSN No.: '4730-00-007-2196
  • Thread Size - T: 3/8"-24
  • Type 1: Complete Fitting

Specification Table

Weight0.09 lbs
G'0.432
H'0.163
K'0.500
L'0.562
Hose Size'3/16
Insert Assembly148-33174
Mil SpecMS27384
NSN No.'4730-00-007-2196
Thread Size - T3/8"-24
Type 1Complete Fitting
