148-05214-3/-4

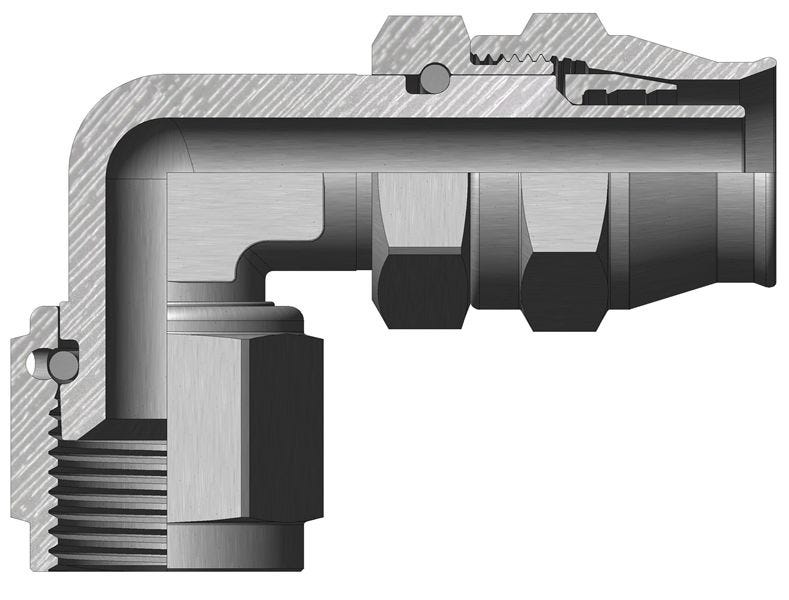

148-05214-3/-4 – Medium Pressure TFE Flared Hose Fittings – 90º Elbow, Flared, Forged

Print Icon Print Download Icon Download PDF

Description:

Use with the following hose: Medium Pressure TFE Flared Hose Fittings – 90º Elbow, Flared, Forged

Specification

  • Weight: 0.089 lbs
  • G: 0.530''
  • H: 0.163''
  • K: 0.500''
  • L: 0.562''
  • Hose Size: 3/16''
  • Insert Assembly: 148-33282
  • Mil Spec: MS27060
  • NSN No.: 4730-00-119-9857''
  • Thread Size - T: 3/8"-24
  • Type 1: Complete Fitting

Specification Table

Weight0.089 lbs
G0.530''
H0.163''
K0.500''
L0.562''
Hose Size3/16''
Insert Assembly148-33282
Mil SpecMS27060
NSN No.4730-00-119-9857''
Thread Size - T3/8"-24
Type 1Complete Fitting
