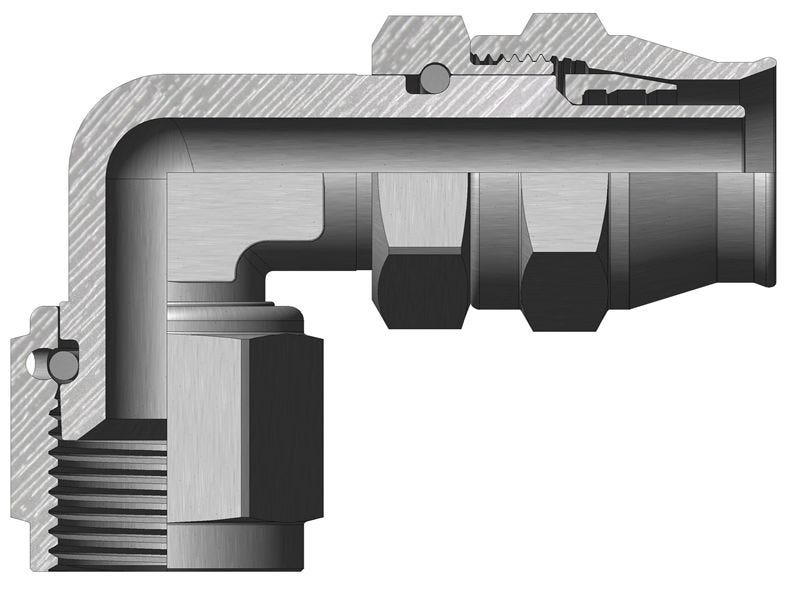

148-05214-3/-4 – Medium Pressure TFE Flared Hose Fittings – 90º Elbow, Flared, Forged
148-05214-3/-4 – Medium Pressure TFE Flared Hose Fittings – 90º Elbow, Flared, Forgedmedium_pressure_tfe_hose_fitting_-_90_degree_elbow_flared_forged_3
148-05214-3/-4

148-05214-3/-4 – Medium Pressure TFE Flared Hose Fittings – 90º Elbow, Flared, Forged

Print Icon Print Download Icon Download PDF

Specification

  • Weight: 0.167 lbs
  • Nom Dimension G In: '0.720
  • Dimension H 0 005 0 000 In: '0.263
  • Nom Dimension K In: '0.688
  • Hose Size: '3/8
  • Insert Assembly: 148-31983
  • Mil Spec: MS27060
  • NSN No.: '4730-00-013-6969
  • Thread Size - T: 9/16"-18
  • Type 1: Complete Fitting

Specification Table

Weight0.167 lbs
Nom Dimension G In'0.720
Dimension H 0 005 0 000 In'0.263
Nom Dimension K In'0.688
Hose Size'3/8
Insert Assembly148-31983
Mil SpecMS27060
NSN No.'4730-00-013-6969
Thread Size - T9/16"-18
Type 1Complete Fitting
