148-05214-04

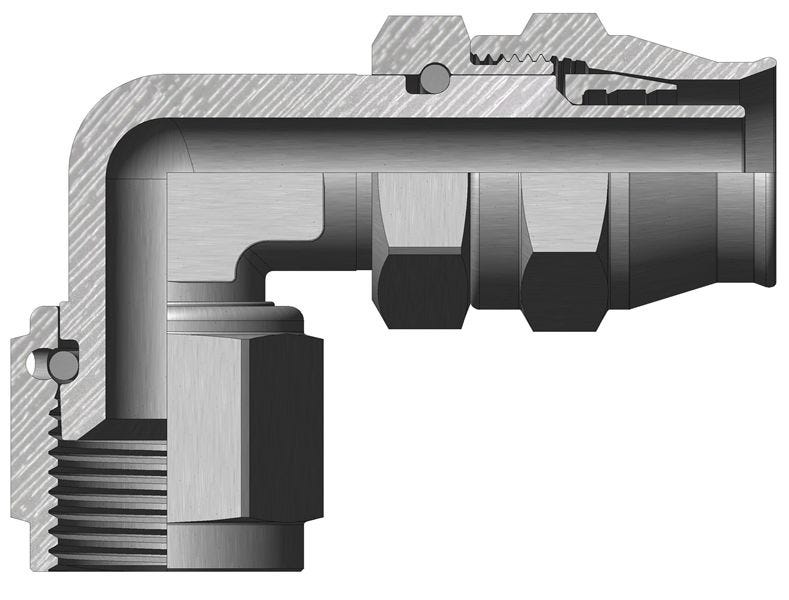

148-05214-04 – Medium Pressure TFE Flared Hose Fittings – 90º Elbow, Flared, Forged

Print Icon Print Download Icon Download PDF

Specification

  • Weight: 0.1 lbs
  • G: 0.580''
  • H: 0.163''
  • K: 0.562''
  • L: 0.562''
  • Hose Size: 1/4''
  • Insert Assembly: 148-31981
  • Mil Spec: MS27060
  • NSN No.: 4730-00-013-6970''
  • Thread Size - T: 7/16"-20
  • Type 1: Complete Fitting

Specification Table

Weight0.1 lbs
G0.580''
H0.163''
K0.562''
L0.562''
Hose Size1/4''
Insert Assembly148-31981
Mil SpecMS27060
NSN No.4730-00-013-6970''
Thread Size - T7/16"-20
Type 1Complete Fitting
