148-05212-04

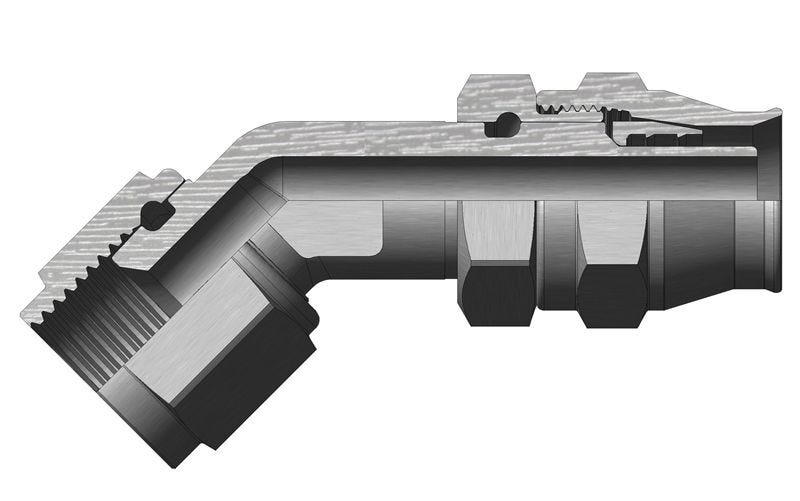

148-05212-04 – Medium Pressure TFE Flared Hose Fittings – 45º Elbow, Flared, Forged

Print Icon Print Download Icon Download PDF

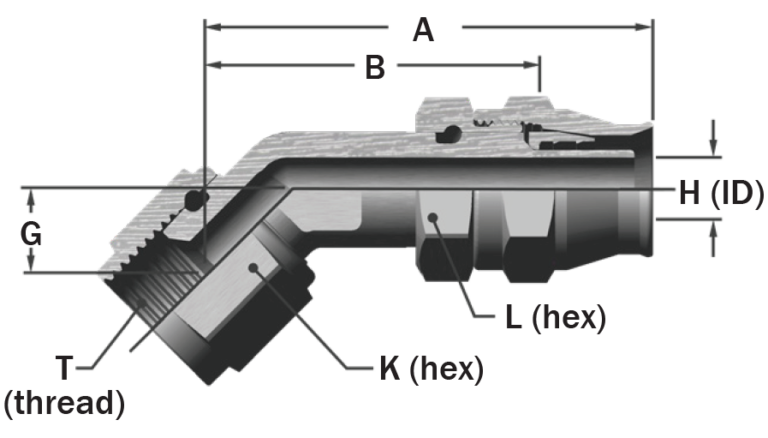

Specification

  • Weight: 0.097 lbs
  • G: 0.322''
  • H: 0.163''
  • K: 0.562''
  • L: 0.562''
  • Hose Size: 1/4''
  • Insert Assembly: 148-31969
  • Mil Spec: MS27059
  • NSN No.: 4730-00-889-2465''
  • Thread Size - T: 7/16"-20
  • Type 1: Complete Fitting

Specification Table

Weight0.097 lbs
G0.322''
H0.163''
K0.562''
L0.562''
Hose Size1/4''
Insert Assembly148-31969
Mil SpecMS27059
NSN No.4730-00-889-2465''
Thread Size - T7/16"-20
Type 1Complete Fitting
