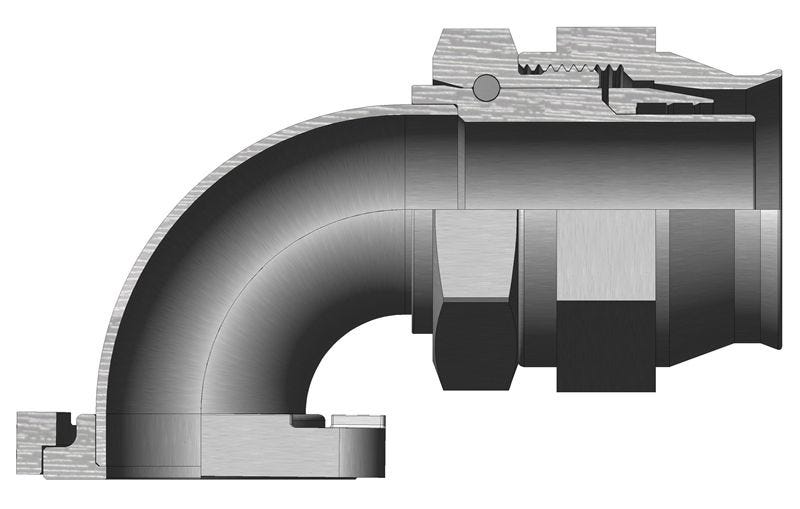

148-05210-08 – Medium Pressure TFE Flanged Hose Fittings – 90º Elbow, Flanged, Bent Tube
148-05210-08 – Medium Pressure TFE Flanged Hose Fittings – 90º Elbow, Flanged, Bent Tubemedium_pressure_tfe_hose_fitting_-_90_degree_6
148-05210-08

148-05210-08 – Medium Pressure TFE Flanged Hose Fittings – 90º Elbow, Flanged, Bent Tube

Print Icon Print Download Icon Download PDF

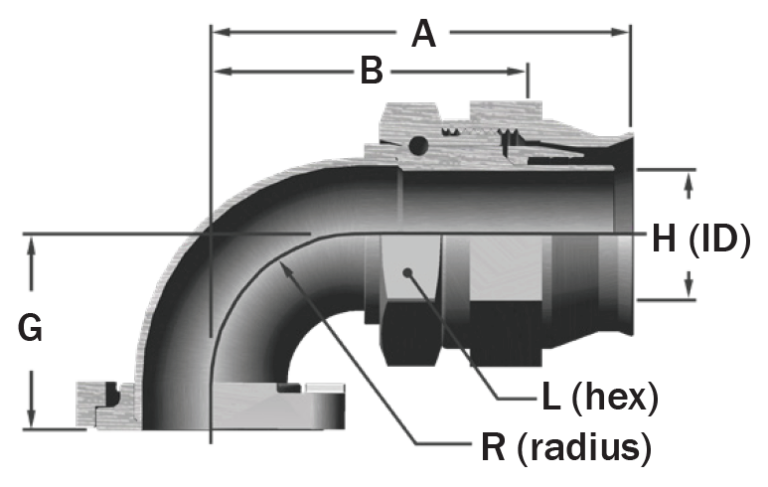

Specification

  • Weight: 0.247 lbs
  • G: '0.772
  • H: '0.348
  • L: '0.875
  • R: '0.50
  • Hose Size: '1/2
  • Insert Assembly: 148-33964
  • Mil Spec: MS27058
  • NSN No.: '4730-00-220-1848
  • Type 1: Complete Fitting

Specification Table

Weight0.247 lbs
G'0.772
H'0.348
L'0.875
R'0.50
Hose Size'1/2
Insert Assembly148-33964
Mil SpecMS27058
NSN No.'4730-00-220-1848
Type 1Complete Fitting
