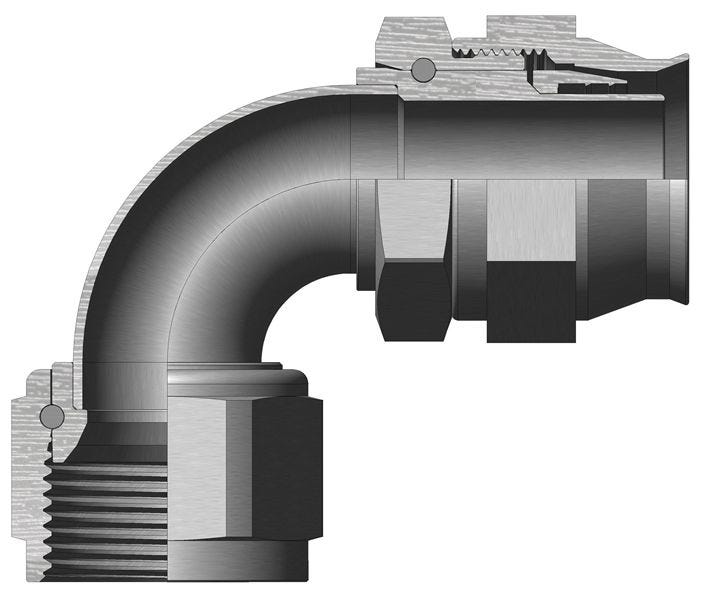

148-05208-16 – Medium Pressure TFE Flared Hose Fittings – 90º Elbow, Flared, Bent Tube
148-05208-16 – Medium Pressure TFE Flared Hose Fittings – 90º Elbow, Flared, Bent Tubemedium_pressure_tfe_hose_fitting_-_90_degree_9
148-05208-16

148-05208-16 – Medium Pressure TFE Flared Hose Fittings – 90º Elbow, Flared, Bent Tube

Print Icon Print Download Icon Download PDF

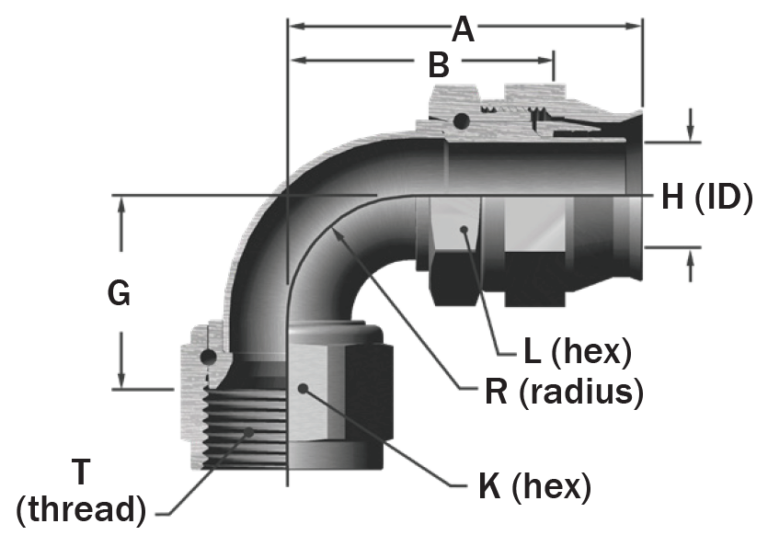

Specification

  • Weight: 0.744 lbs
  • G: '1.500
  • H: '0.831
  • K: '1.500
  • L: '1.500
  • R: '0.97
  • Hose Size: '1
  • Insert Assembly: 148-33348
  • Mil Spec: Ms27057
  • NSN No.: '4730-00-925-4458
  • Thread Size - T: 1-5/16"-12
  • Type 1: Complete Fitting

Specification Table

Weight0.744 lbs
G'1.500
H'0.831
K'1.500
L'1.500
R'0.97
Hose Size'1
Insert Assembly148-33348
Mil SpecMs27057
NSN No.'4730-00-925-4458
Thread Size - T1-5/16"-12
Type 1Complete Fitting
