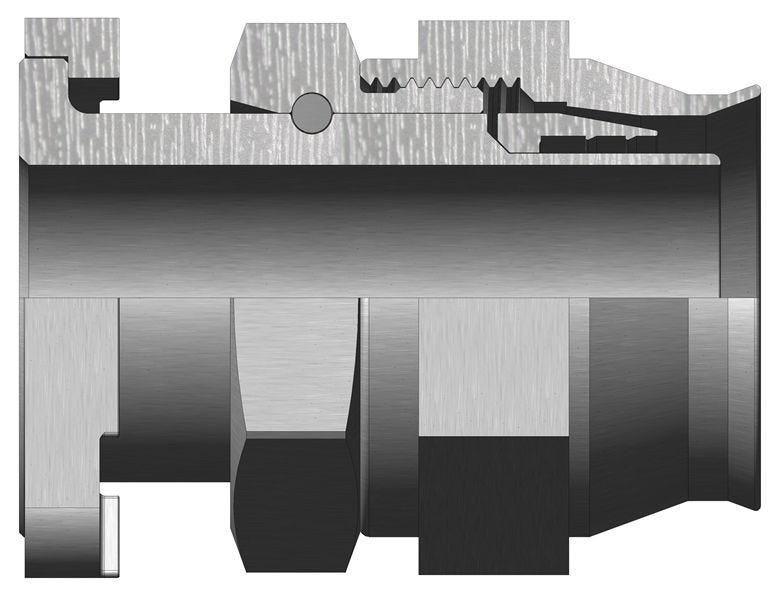

148-05202-10 – Medium Pressure TFE Flanged Hose Fittings – Straight, Flanged
148-05202-10 – Medium Pressure TFE Flanged Hose Fittings – Straight, Flangedmedium_pressure_tfe_hose_fitting_6-100x100
148-05202-10

148-05202-10 – Medium Pressure TFE Flanged Hose Fittings – Straight, Flanged

Print Icon Print Download Icon Download PDF

Specification

  • Weight: 0.361 lbs
  • H: '0.443
  • L: '1.000
  • Hose Size: '5/8
  • Insert Assembly: 148-07046
  • Mil Spec: MS27054
  • Type 1: Complete Fitting
  • Notes: Dimension B: Cutoff Factor Dimensional Information Is For Reference Only. Variations From These Dimensions On Actual Parts May Occur As The Result Of Engineering Revisions.

Specification Table

Weight0.361 lbs
H'0.443
L'1.000
Hose Size'5/8
Insert Assembly148-07046
Mil SpecMS27054
Type 1Complete Fitting
NotesDimension B: Cutoff Factor Dimensional Information Is For Reference Only. Variations From These Dimensions On Actual Parts May Occur As The Result Of Engineering Revisions.
