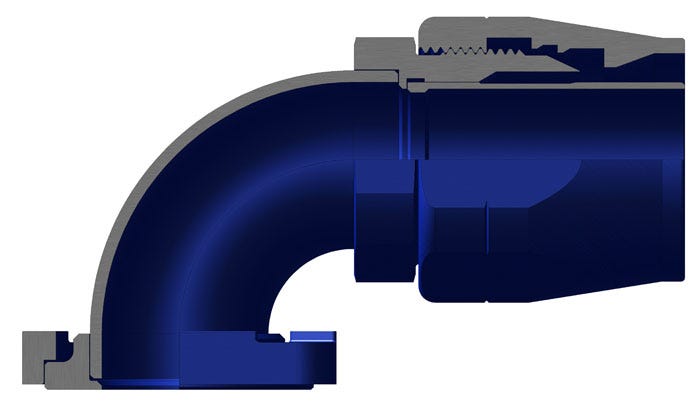

lightweightmediumpressurehosefitting 90degreeelbowflanged136 3090 16d cutside
lightweightmediumpressurehosefitting 90degreeelbowflanged136 3090 16d cutsidelightweightmediumpressurehosefitting-90degreeelbowflangedbenttube-dimensions-100x100
136-3090-12D

136-3090-12D – Lightweight Medium Pressure Flanged Hose Fittings – 90º Elbow, Flanged, Bent Tube

Print Icon Print Download Icon Download PDF

Specification

  • Weight: 0.164 lbs
  • G: 1.156''
  • H: 0.587''
  • R: 0.844''
  • Hose Size: 3/4''
  • Insert Assembly: 138-3090-12D
  • Mil Spec: M83798/9
  • NSN No.: 4730-01-097-2832''
  • Socket Assembly No: Socket Assembly No
  • Type 1: Complete Fitting

Specification Table

Weight0.164 lbs
G1.156''
H0.587''
R0.844''
Hose Size3/4''
Insert Assembly138-3090-12D
Mil SpecM83798/9
NSN No.4730-01-097-2832''
Socket Assembly NoSocket Assembly No
Type 1Complete Fitting
