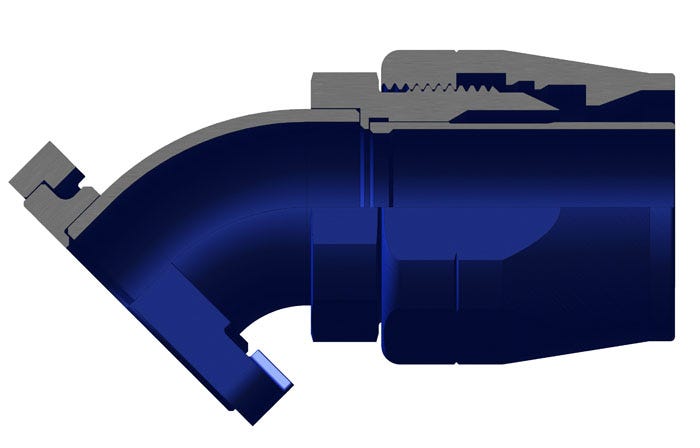

136-3045-32D – Lightweight Medium Pressure Flanged Hose Fittings – 45º Elbow, Flanged, Bent Tube

Print Icon Print Download Icon Download PDF

Specification

  • Weight: 0.672 lbs
  • G: 0.734''
  • H: 1.684''
  • R: 1.75''
  • Hose Size: 2''
  • Insert Assembly: 138-3045-32D
  • Mil Spec: M83798/8
  • Socket Assembly No: 136-900-32D''
  • Type 1: Complete Fitting
  • Notes: Dimension B: Cutoff Factor Dimensional Information Is For Reference Only. Variations From These Dimensions On Actual Parts May Occur As The Result Of Engineering Revisions. Part Col

Specification Table

Weight0.672 lbs
G0.734''
H1.684''
R1.75''
Hose Size2''
Insert Assembly138-3045-32D
Mil SpecM83798/8
Socket Assembly No136-900-32D''
Type 1Complete Fitting
NotesDimension B: Cutoff Factor Dimensional Information Is For Reference Only. Variations From These Dimensions On Actual Parts May Occur As The Result Of Engineering Revisions. Part Col
Innovative EngineeringQuality AssuranceDefense GradeMission Focused
