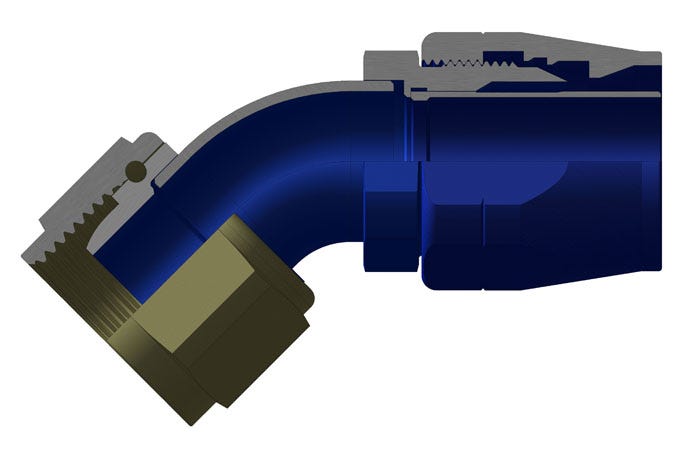

136-2045-03 – Lightweight Medium Pressure Flareless Hose Fittings – 45º Elbow, Flareless, Bent Tube
136-2045-03 – Lightweight Medium Pressure Flareless Hose Fittings – 45º Elbow, Flareless, Bent Tubelightweightmediumpressurehosefitting-45degreeelbowflarelessbenttube-dimensions-100x100
136-2045-03

136-2045-03 – Lightweight Medium Pressure Flareless Hose Fittings – 45º Elbow, Flareless, Bent Tube

Print Icon Print Download Icon Download PDF

Specification

  • Weight: 0.059 lbs
  • G: '0.480
  • H: '0.111
  • K: '0.500
  • M: '0.58
  • R: '0.375
  • Hose Size: '3/16
  • Insert Assembly: 137-2045-03
  • Mil Spec: M83798/5
  • Socket Assembly No: '136-900-03D
  • Thread Size - T: 3/8"-24
  • Type 1: Complete Fitting
  • Notes: Dimension B: Cutoff Factor Dimensional Information Is For Reference Only. Variations From These Dimensions On Actual Parts May Occur As The Result Of Engineering Revisions. Part Col

Specification Table

Weight0.059 lbs
G'0.480
H'0.111
K'0.500
M'0.58
R'0.375
Hose Size'3/16
Insert Assembly137-2045-03
Mil SpecM83798/5
Socket Assembly No'136-900-03D
Thread Size - T3/8"-24
Type 1Complete Fitting
NotesDimension B: Cutoff Factor Dimensional Information Is For Reference Only. Variations From These Dimensions On Actual Parts May Occur As The Result Of Engineering Revisions. Part Col
