136-2000-08D – Lightweight Medium Pressure Flareless Hose Fittings – Straight, Flareless

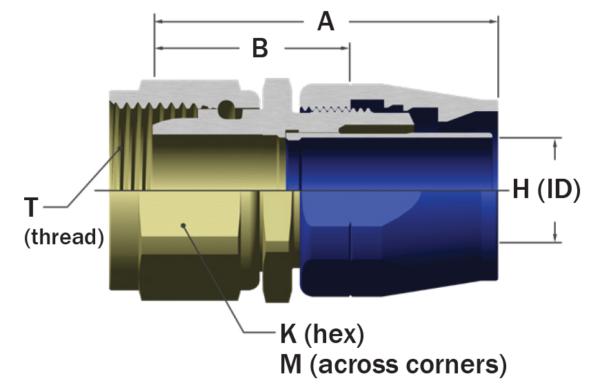

136-2000-08D – Lightweight Medium Pressure Flareless Hose Fittings – Straight, Flarelesslightweightmediumpressurehosefitting-straightflareless-dimensions-600x392
136-2000-08D

136-2000-08D – Lightweight Medium Pressure Flareless Hose Fittings – Straight, Flareless

Print Icon Print Download Icon Download PDF

Specification

  • Weight: 0.082 lbs
  • H: '0.378
  • K: '0.875
  • M: '1.010
  • Hose Size: '1/2
  • Insert Assembly: 137-2000-08D
  • Mil Spec: M83798/4
  • NSN No.: '4730-00-966-0747
  • Socket Assembly No: '136-900-08D
  • Thread Size - T: 3/4"-16
  • Type 1: Complete Fitting

Specification Table

Weight0.082 lbs
H'0.378
K'0.875
M'1.010
Hose Size'1/2
Insert Assembly137-2000-08D
Mil SpecM83798/4
NSN No.'4730-00-966-0747
Socket Assembly No'136-900-08D
Thread Size - T3/4"-16
Type 1Complete Fitting
