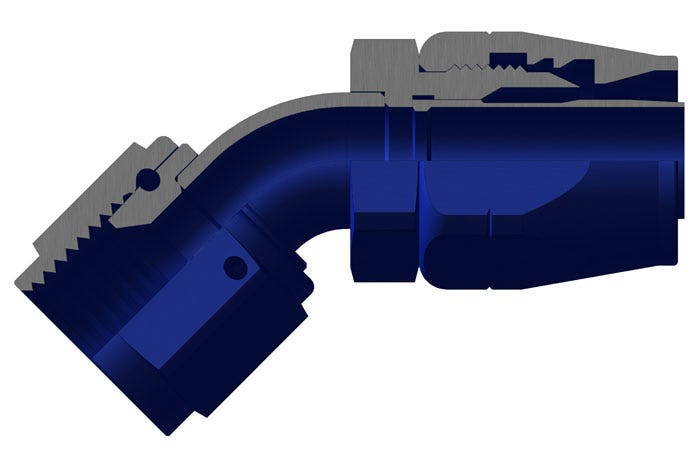

136-1045-32D – Lightweight Medium Pressure Flared Hose Fittings – 45º Elbow, Flared, Bent Tube

Print Icon Print Download Icon Download PDF

Specification

  • Weight: 1.032 lbs
  • G: 1.065''
  • H: 1.706''
  • K: 2.750''
  • M: 3.20''
  • R: 1.75''
  • Hose Size: 2''
  • Insert Assembly: 137-1045-32D
  • Mil Spec: M83798/2
  • NSN No.: 136-900-32D''
  • Thread Size - T: 2-1/2"-12
  • Type 1: Complete Fitting
  • Notes: Dimension B: Cutoff Factor Dimensional Information Is For Reference Only. Variations From These Dimensions On Actual Parts May Occur As The Result Of Engineering Revisions. Part Col

Specification Table

Weight1.032 lbs
G1.065''
H1.706''
K2.750''
M3.20''
R1.75''
Hose Size2''
Insert Assembly137-1045-32D
Mil SpecM83798/2
NSN No.136-900-32D''
Thread Size - T2-1/2"-12
Type 1Complete Fitting
NotesDimension B: Cutoff Factor Dimensional Information Is For Reference Only. Variations From These Dimensions On Actual Parts May Occur As The Result Of Engineering Revisions. Part Col
