TP-2.5FSB

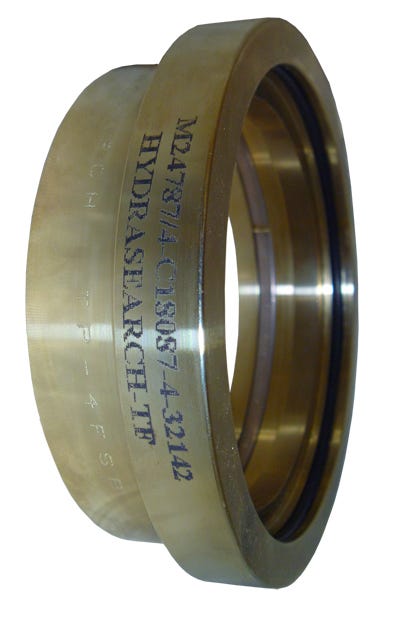

TP-2.5FSB – Female Sil-Braze Tailpieces (MIL-DTL-24787/4, Type TF, Group IV)

Print Icon Print Download Icon Download PDF

Specification

  • A: 1.86''
  • B: 2.88''
  • C: 2.59''
  • D: 3.01''
  • E: 3-3/4''
  • F: 0.78''
  • G: 0.35''
  • Equal To Aeroquip No : FF5001-40 FF5001-40-188
  • Hydrasearch Drawing Number: C18084
  • IPS Size: 2-1/2''
  • Material: Material – Aluminum Bronze In Accordance With Mil-B-24480 C95800
  • Mil Spec: MIL-DTL-24787/4
  • Required Per Assembly: 1
  • Series: 4048''
  • Size: 48

Specification Table

A1.86''
B2.88''
C2.59''
D3.01''
E3-3/4''
F0.78''
G0.35''
Equal To Aeroquip No FF5001-40 FF5001-40-188
Hydrasearch Drawing NumberC18084
IPS Size2-1/2''
MaterialMaterial – Aluminum Bronze In Accordance With Mil-B-24480 C95800
Mil SpecMIL-DTL-24787/4
Required Per Assembly1
Series4048''
Size48
