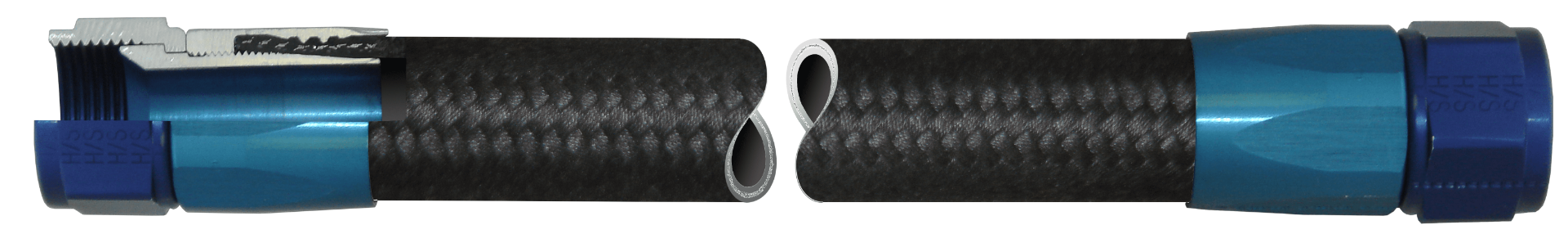

medium pressure hose assembly 94b010003f0000 1 11

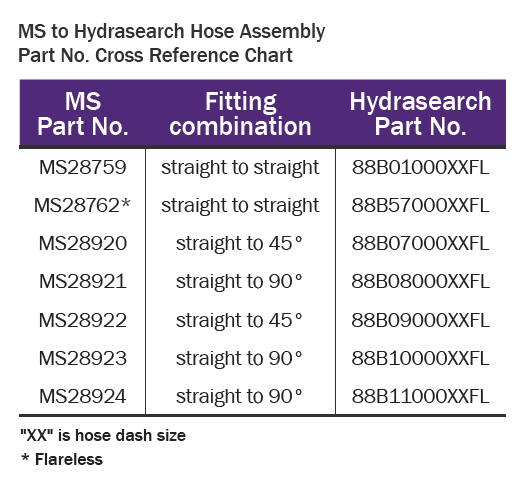

medium pressure hose assembly 94b010003f0000 1 11highpressurerubberhoseassemblies-mstohydrasearchhoseassemblycrossreference_11
94B01000240000

94B01000240000 – Medium Pressure Rubber Hose Assemblies

Print Icon Print Download Icon Download PDF

Specification

  • Finish: Aluminum Alloy – Anodized in accordance with MIL-A-8625
  • Fitting Mil Spec: Mil-Dtl-5070
  • Hose Assembly Mil Spec: Mil-Dtl-8795
  • Hose Mil Spec: Mil-Dtl-8794
  • Hose Id: 1.375
  • Hose Size: 1-1/2
  • Material: Aluminum In Accordance With Table 1 Of Mil-Dtl-5070
  • Max Operating Pressure PSI: 500
  • Min Bend Radius : 11.00
  • Min Burst Pressure: 2
  • Min Hose Id: 1.375
  • Min Proof Pressure : 1
  • Ms Part No: Ms28741-24-L
  • Thread Size: 1-7/8"-12
  • Notes: Dimensional Information Is For Reference Only. Variations From These Dimensions On Actual Parts May Occur As The Result Of Engineering Revisions.

Specification Table

FinishAluminum Alloy – Anodized in accordance with MIL-A-8625
Fitting Mil SpecMil-Dtl-5070
Hose Assembly Mil SpecMil-Dtl-8795
Hose Mil SpecMil-Dtl-8794
Hose Id1.375
Hose Size1-1/2
MaterialAluminum In Accordance With Table 1 Of Mil-Dtl-5070
Max Operating Pressure PSI500
Min Bend Radius 11.00
Min Burst Pressure2
Min Hose Id1.375
Min Proof Pressure 1
Ms Part NoMs28741-24-L
Thread Size1-7/8"-12
NotesDimensional Information Is For Reference Only. Variations From These Dimensions On Actual Parts May Occur As The Result Of Engineering Revisions.
