8635-8-32-NICU

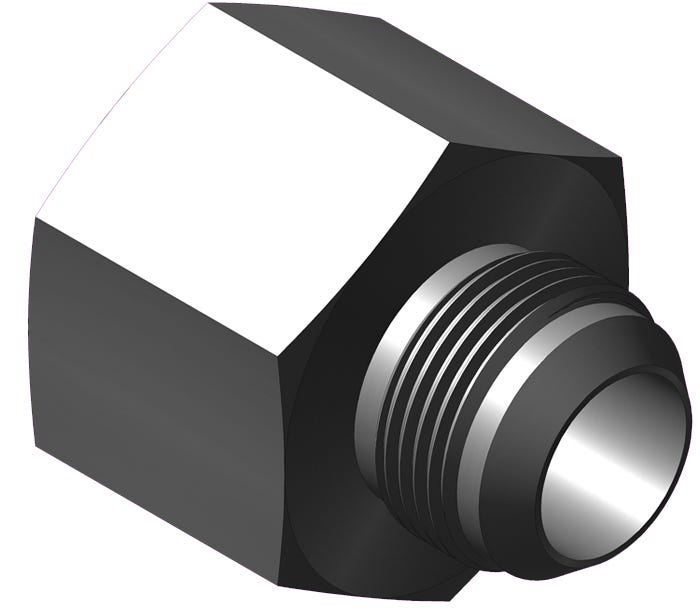

8635-8-32-NICU – 8635 Series Female Sil-Braze Pipe x 37º Male Flare Adapters

Print Icon Print Download Icon Download PDF

Description:

Equal to Aeroquip 202242,

Specification

  • H: 2.62''
  • A: 3.64''
  • B: 2.38''
  • C: 1-1/4''
  • Equal To Aeroquip No : 4-202242-2-32
  • Hydrasearch Drawing Number: 8635-8-32
  • Material: Monel
  • NSN No.: 4730-00-871-6944
  • Thread Size - T: 2-1/2"-12

Specification Table

H2.62''
A3.64''
B2.38''
C1-1/4''
Equal To Aeroquip No 4-202242-2-32
Hydrasearch Drawing Number8635-8-32
MaterialMonel
NSN No.4730-00-871-6944
Thread Size - T2-1/2"-12
