8635-7-32-CUNI

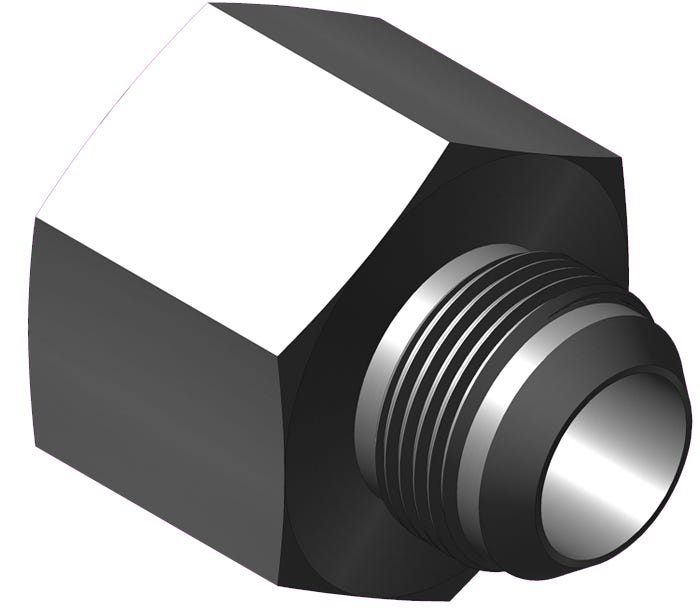

8635-7-32-CUNI – 8635 Series Female Sil-Braze Pipe x 37º Male Flare Adapters

Print Icon Print Download Icon Download PDF

Description:

Equal to Aeroquip 202242,

Specification

  • H: 2.62''
  • A: 3.38''
  • B: 1.90''
  • C: 1''
  • Material: Copper Nickel
  • Thread Size - T: 2-1/2"-12
  • Notes: Dimensional Information Is For Reference Only. Variations From These Dimensions On Actual Parts May Occur As The Result Of Engineering Revisions.

Specification Table

H2.62''
A3.38''
B1.90''
C1''
MaterialCopper Nickel
Thread Size - T2-1/2"-12
NotesDimensional Information Is For Reference Only. Variations From These Dimensions On Actual Parts May Occur As The Result Of Engineering Revisions.
