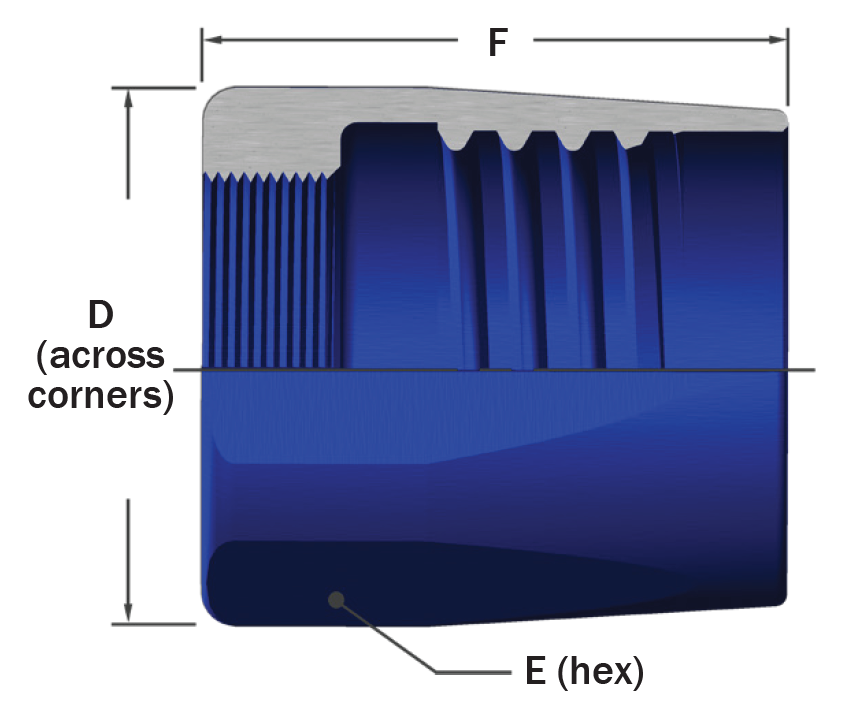

mediumpressurecomponent socket dimensions

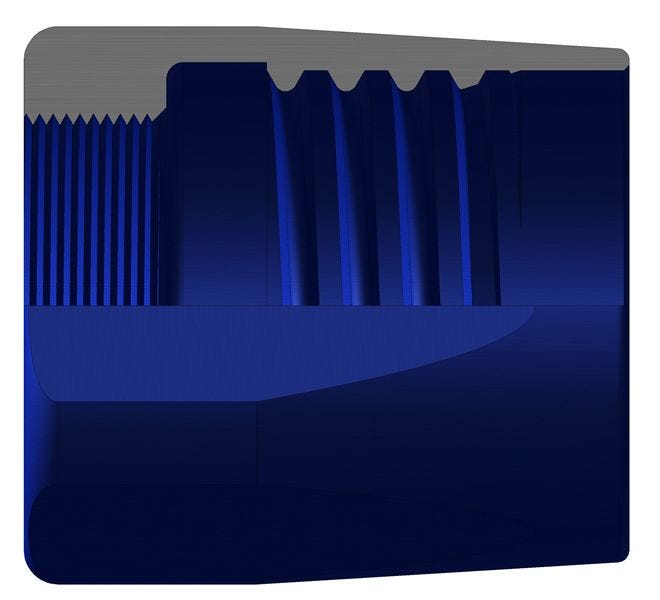

mediumpressurecomponent socket dimensionsmediumpressurehosefitting-socket148-32116-cut-side-1
148-32104

148-32104 – Medium Pressure Hose Fitting Sockets

Print Icon Print Download Icon Download PDF

Specification

  • D: 0.688''
  • E: 0.625''
  • F: 1.100''
  • Mil Spec: MS24590
  • NSN No.: 4730-00-498-6095 4730-00684-0748 4730-01-089-4324

Specification Table

D0.688''
E0.625''
F1.100''
Mil SpecMS24590
NSN No.4730-00-498-6095 4730-00684-0748 4730-01-089-4324
