148-05206-16

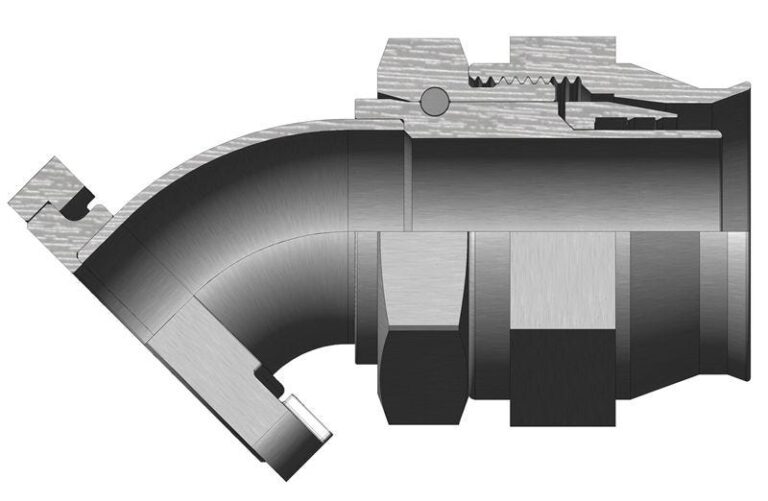

148-05206-16 – Medium Pressure TFE Flanged Hose Fittings – 45º Elbow, Flanged, Bent Tube

Print Icon Print Download Icon Download PDF

Specification

  • Weight: 0.635 lbs

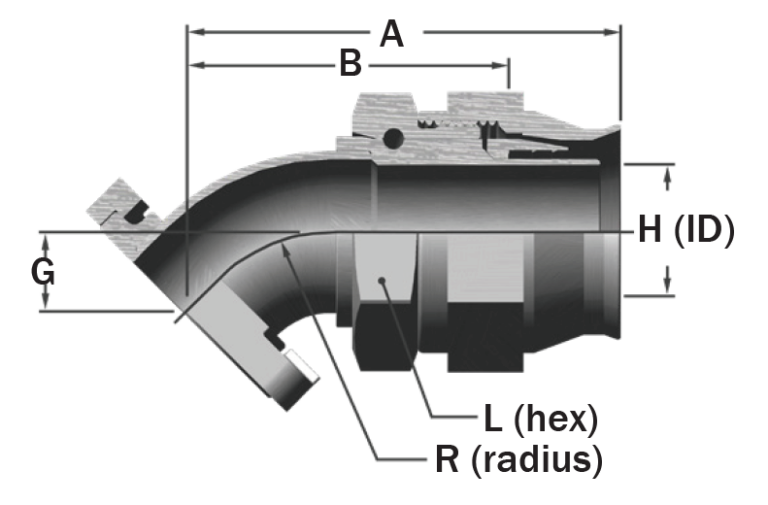

  • G: 0.505''
  • H: 0.831''
  • L: 1.500''
  • R: 0.969''
  • Hose Size: 1''
  • Insert Assembly: 148-33917
  • Mil Spec: MS27056
  • NSN No.: 4730-00-198-6448''
  • Type 1: Complete Fitting

Specification Table

Weight0.635 lbs
G0.505''
H0.831''
L1.500''
R0.969''
Hose Size1''
Insert Assembly148-33917
Mil SpecMS27056
NSN No.4730-00-198-6448''
Type 1Complete Fitting
