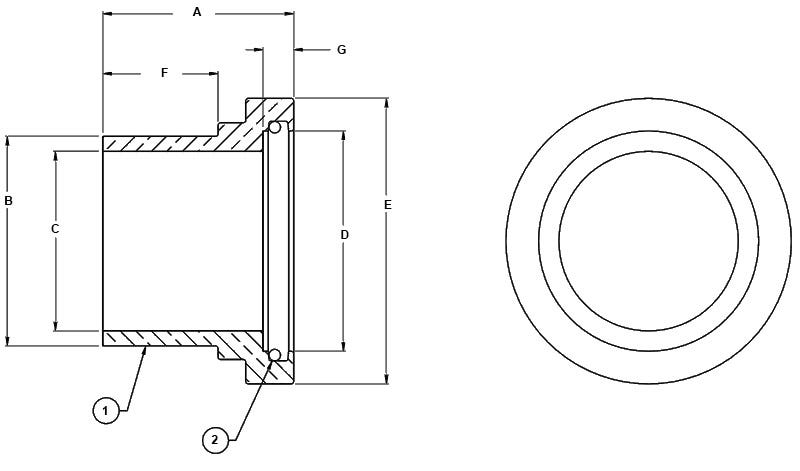

TP-8MSB

TP-8MSB – Male Sil-Braze Tailpieces (MIL-DTL-24787/4, Type TM, Group IX)

Print Icon Print Download Icon Download PDF

Specification

  • A: 4.37
  • B: 8.62
  • C: 7.88
  • D: 9.01
  • E: 9.97
  • F: 2.82
  • G: 0.84
  • Equal To Aeroquip No : 500189-8 188-500189-8
  • Hydrasearch Drawing Number: C17550
  • IPS Size: 8
  • Mil Spec: MIL-DTL-24787/4

Specification Table

A4.37
B8.62
C7.88
D9.01
E9.97
F2.82
G0.84
Equal To Aeroquip No 500189-8 188-500189-8
Hydrasearch Drawing NumberC17550
IPS Size8
Mil SpecMIL-DTL-24787/4
