EF-SPW/WL-0.875

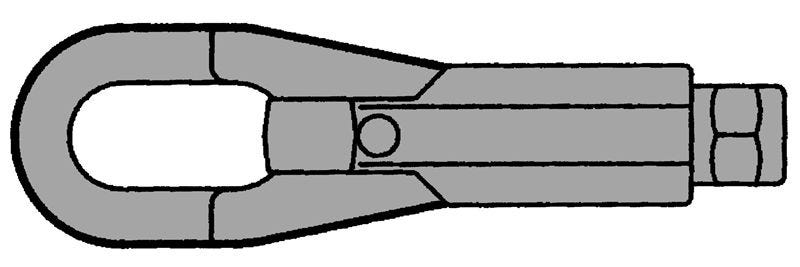

EF-SPW/WL-0.875 – End Fittings – Span Wire, Weak Link

Print Icon Print Download Icon Download PDF

Specification

  • Equal To Global No: 2252856-0.875
  • Approx Weight Per In Lbs: 9
  • Failure Point Lbs: 35
  • Height In: 3.00''
  • Hydrasearch Drawing Number: C17366
  • Material: Steel
  • Navsea Drawing No: 803-2252856
  • NSN No.: 1450-00-119-1714''
  • Wire Rope Size In: 0.875''

Specification Table

Equal To Global No2252856-0.875
Approx Weight Per In Lbs9
Failure Point Lbs35
Height In3.00''
Hydrasearch Drawing NumberC17366
Length In-
MaterialSteel
Navsea Drawing No803-2252856
NSN No.1450-00-119-1714''
Width In-
Wire Rope Size In0.875''
