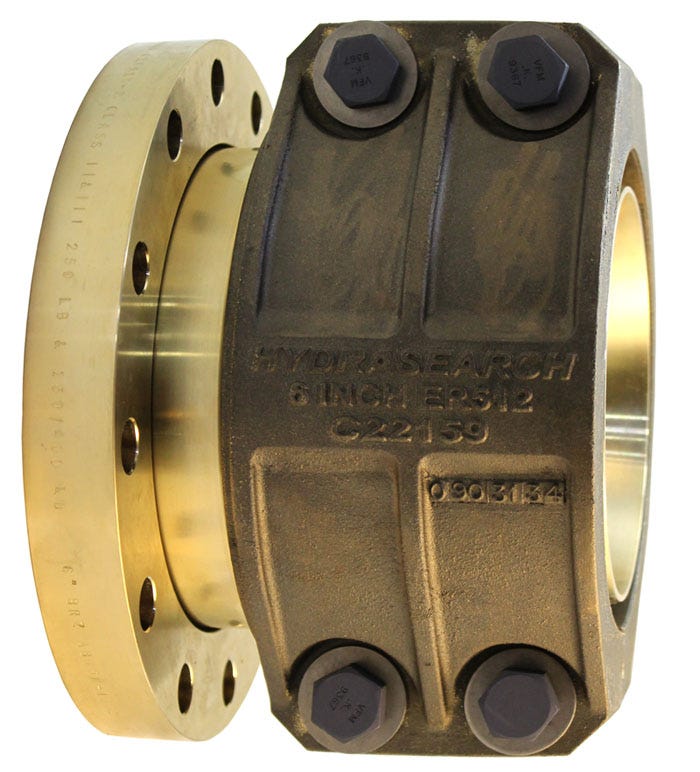

EF-10-250F-2P

EF-10-250F-2P – 2-Piece End Fittings – Straight – Flange to Hose (MIL-DTL-24787/1, Type F, Group IX, Class III, 250 Lb. Flange per MIL-PRF-20042)

Print Icon Print Download Icon Download PDF

Description:

Use with the following hose: ER512 & 2580

Specification

  • Applicable Hoses: ER512 2580
  • Component 1: Required per Assembly – 1 Description – Swivel Flange C18827 Material – Aluminum Bronze in accordance with MIL-B-24480 C95800
  • Component 2: Description – Nipple Required per Assembly – 1 D18324 Material – Aluminum Bronze in accordance with MIL-B-24480 C95800
  • Component 3: Required per Assembly – 2 Description – Segment Material – Aluminum Bronze in accordance with MIL-B-24480 C95800 C22161
  • Component 4: Description – Bolt Required per Assembly – 4 Material – Monel in accordance with QQ-N-286 C22173-2
  • Component 5: Description – Nut Required per Assembly – 4 B18347 Material – Monel in accordance with QQ-N-281
  • Component 6: Description – Washer B18348 Material – Monel in accordance with QQ-N-281 Required per Assembly – 4
  • J: 15.00''
  • K: 12.04''
  • L: 13.44''
  • M: 0.81''
  • N: 1.44''
  • S: 10.31''
  • T: 15.10''
  • A: 7''
  • D: 2.65''
  • Est. Wt. (lbs.): 95
  • Hydrasearch Drawing Number: C22216
  • IPS Size: 10''
  • Mil Spec: MIL-DTL-24787/1
  • No. of Bolt Holes: 15

Specification Table

Applicable HosesER512 2580
Component 1Required per Assembly – 1 Description – Swivel Flange C18827 Material – Aluminum Bronze in accordance with MIL-B-24480 C95800
Component 2Description – Nipple Required per Assembly – 1 D18324 Material – Aluminum Bronze in accordance with MIL-B-24480 C95800
Component 3Required per Assembly – 2 Description – Segment Material – Aluminum Bronze in accordance with MIL-B-24480 C95800 C22161
Component 4Description – Bolt Required per Assembly – 4 Material – Monel in accordance with QQ-N-286 C22173-2
Component 5Description – Nut Required per Assembly – 4 B18347 Material – Monel in accordance with QQ-N-281
Component 6Description – Washer B18348 Material – Monel in accordance with QQ-N-281 Required per Assembly – 4
J15.00''
K12.04''
L13.44''
M0.81''
N1.44''
S10.31''
T15.10''
A7''
D2.65''
Est. Wt. (lbs.)95
Hydrasearch Drawing NumberC22216
IPS Size10''
Mil SpecMIL-DTL-24787/1
No. of Bolt Holes15
