A-SADL-7-FLT-B/U

A-SADL-7-FLT-B/U – Saddles – Flow Through, Type B (Upper or Double Rig)

Print Icon Print Download Icon Download PDF

Specification

  • Equal To Aeroquip No : 72460-7D
  • Equal To Global No: 72460-7D
  • Approx Weight Per In Lbs: 41

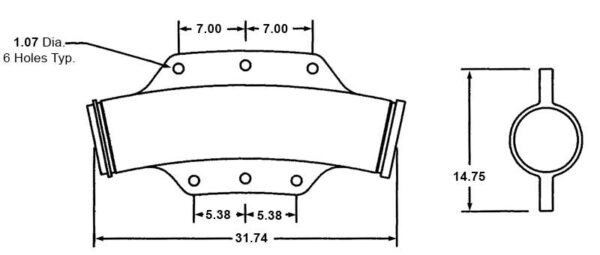

  • Hydrasearch Drawing Number: D13353
  • Material: Aluminum
  • Navsea Drawing No: 803-1385957
  • NSN No.: 4730-00-900-8536
  • Size in: 7''

Specification Table

Equal To Aeroquip No 72460-7D
Equal To Global No72460-7D
Approx Weight Per In Lbs41
Hydrasearch Drawing NumberD13353
MaterialAluminum
Navsea Drawing No803-1385957
NSN No.4730-00-900-8536
Size in7''
