A-ADP-6F-6MS

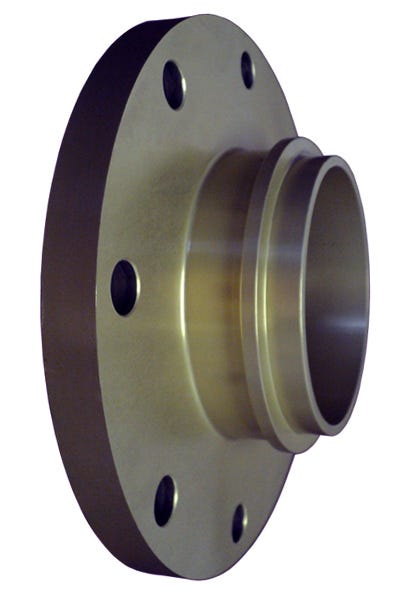

A-ADP-6F-6MS – Adapters – Flange to Male Split Clamp

Print Icon Print Download Icon Download PDF

Specification

  • C: 9.50
  • D: 0.88
  • Equal To Aeroquip No : 73537-6-96D
  • Equal To Global No: 73537-6-96D
  • Estimated Weight Per Ft Lbs: 10
  • Flange End Size In: 6
  • Hydrasearch Drawing Number: D14270-1
  • Navsea Drawing No: 805-4472639
  • NSN No.: 4730-00-817-7778 4730-01-028-1089
  • Material: Aluminum

Specification Table

C9.50
D0.88
Equal To Aeroquip No 73537-6-96D
Equal To Global No73537-6-96D
Estimated Weight Per Ft Lbs10
Flange End Size In6
Hydrasearch Drawing NumberD14270-1
Navsea Drawing No805-4472639
NSN No.4730-00-817-7778 4730-01-028-1089
MaterialAluminum
