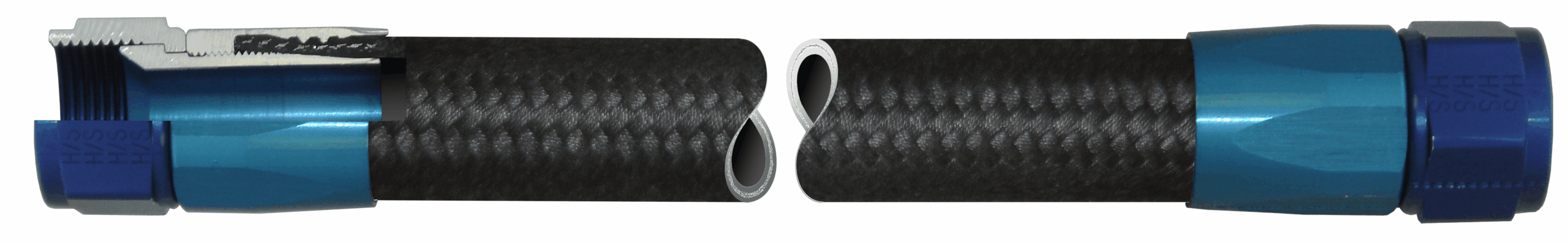

94B010006F0000 – Medium Pressure Rubber Hose Assemblies

Print Icon Print Download Icon Download PDF

Specification

  • Finish: Aluminum Alloy
  • Fitting Mil Spec: Mil-Dtl-5070
  • Hose Assembly Mil Spec: Mil-Dtl-8795
  • Hose Mil Spec: Mil-Dtl-8794
  • Hose Id: 0.313
  • Hose Size: 3/8
  • Material: Steel With Aluminum Sockets In Accordance With Table 1 Of Mil-Dtl-5070
  • Max Operating Pressure PSI: 2
  • Min Bend Radius : 4.000
  • Min Burst Pressure: 9
  • Min Hose Id: 0.313
  • Min Proof Pressure : 4
  • Ms Part No: Ms28741-6-L
  • Thread Size: 9/16"-18
  • Notes: Dimensional Information Is For Reference Only. Variations From These Dimensions On Actual Parts May Occur As The Result Of Engineering Revisions.

Specification Table

FinishAluminum Alloy
Fitting Mil SpecMil-Dtl-5070
Hose Assembly Mil SpecMil-Dtl-8795
Hose Mil SpecMil-Dtl-8794
Hose Id0.313
Hose Size3/8
MaterialSteel With Aluminum Sockets In Accordance With Table 1 Of Mil-Dtl-5070
Max Operating Pressure PSI2
Min Bend Radius 4.000
Min Burst Pressure9
Min Hose Id0.313
Min Proof Pressure 4
Ms Part NoMs28741-6-L
Thread Size9/16"-18
NotesDimensional Information Is For Reference Only. Variations From These Dimensions On Actual Parts May Occur As The Result Of Engineering Revisions.
