150-60000-12

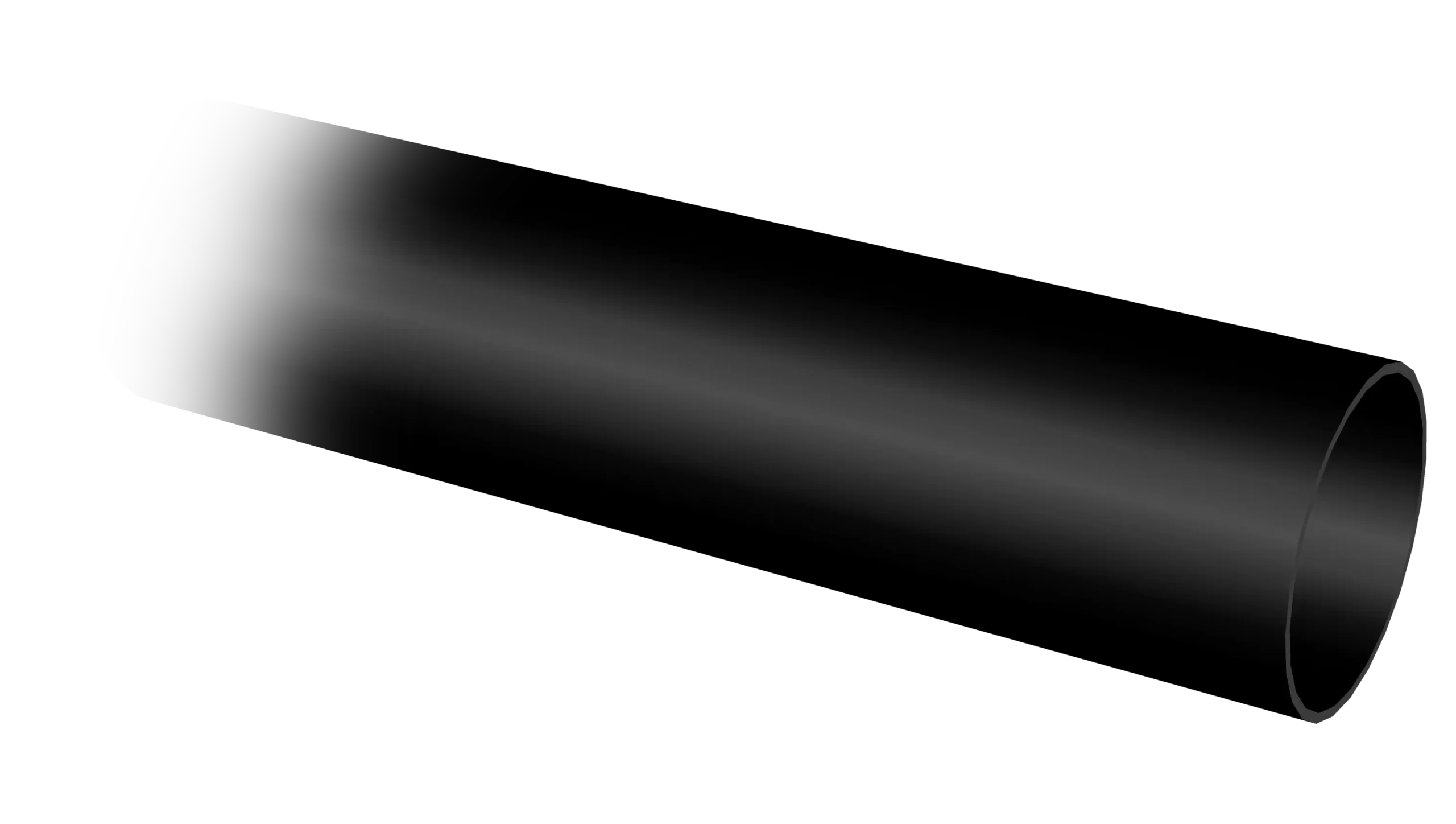

150-60000-12 – Chafe Guards, Black TFE

Print Icon Print Download Icon Download PDF

Specification

  • Min Id Ref In: 1.363
  • Nom Id 0 015 In: 1.378
  • Nom Od Ref In: 1.438
  • Notes: Dimensional Information Is For Reference Only. Variations From These Dimensions On Actual Parts May Occur As The Result Of Engineering Revisions.

Specification Table

Min Id Ref In1.363
Nom Id 0 015 In1.378
Nom Od Ref In1.438
NotesDimensional Information Is For Reference Only. Variations From These Dimensions On Actual Parts May Occur As The Result Of Engineering Revisions.
